LINEAR BAR GRILLES

MV 10 series

Our linear bar grilles  meet and exceed our customers’ needs and expectations and are designed according to HVAC and architectural industry standards. Extruded aluminum, architectural bronze, stainless steel and steel linear bar grilles are the top choice of architects, contractors and homeowners across the US.

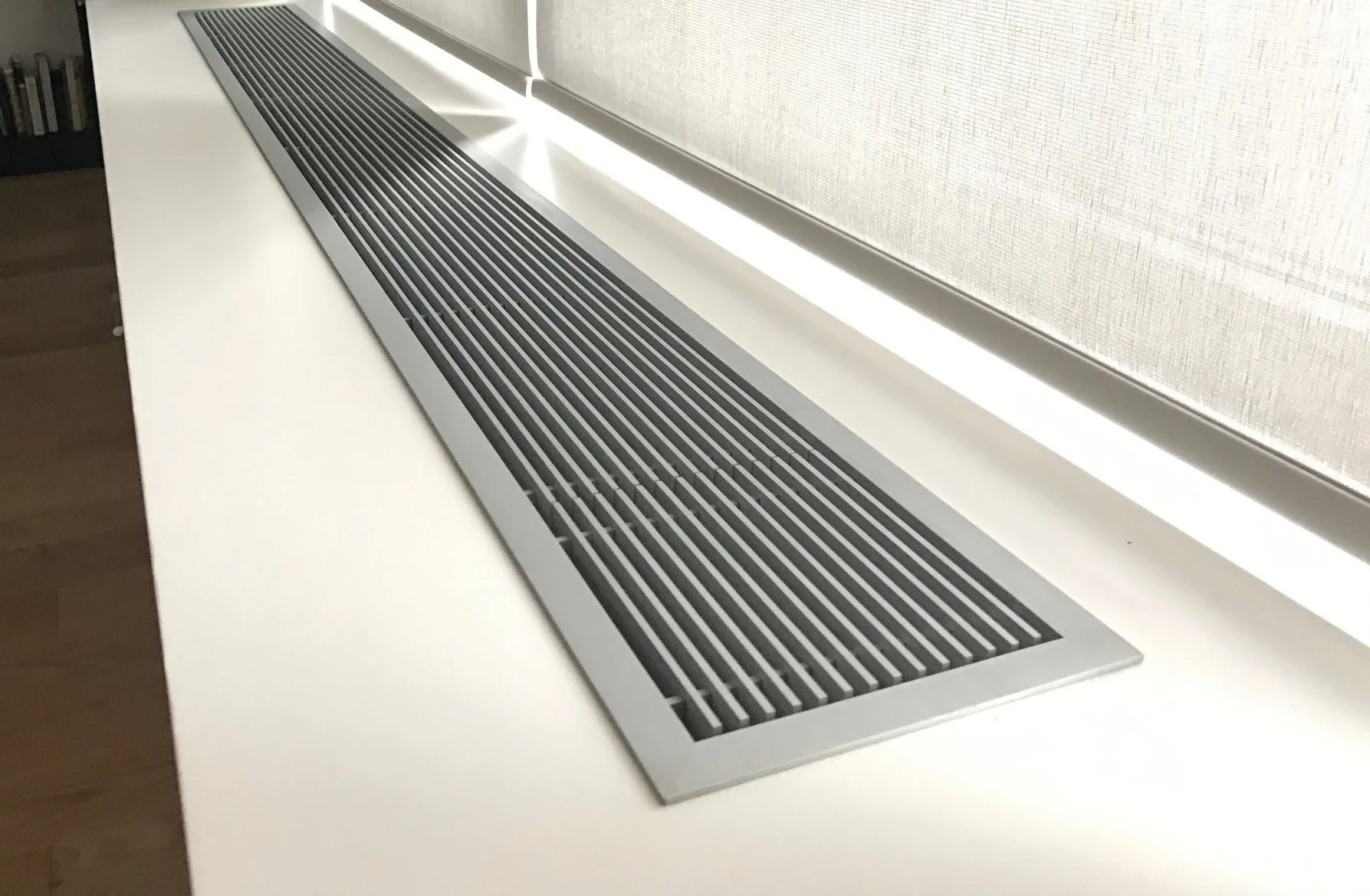

The flexible design is instrumental to applications throughout the entire room. Classic placement is on top of radiator and AC units. More modern approaches have made a great visual improvement to houses and offices, the linear bar grilles can replace old radiator covers completely, mounted vertically; they can be installed on walls, ceilings or floors.

MATERIALS AND FINISHES

ALUMINUM

Satin (#4)

Mirror Polish (#8)

Anodized

  1. Clear
  2. Black
  3. Duranodic
  • Champagne
  • Light Bronze
  • Medium Bronze
  • Dark Bronze

Powder Coating

Primed

BRONZE & BRASS

Satin (#4)

Mirror Polish (#8)

Statuary (US10B)

  1. Light
  2. Medium
  3. Dark

STAINLESS STEEL

Satin (#4)

Mirror Polish (#8)

STEEL

Thickness 1/16" to 1/8"

Satin Chrome (#4)

Polished Chrome (#8)

Blackened

Antique Brass Plating

Antique Bronze Plating

Polished Brass Plating

Powder Coating

Primed

anodizing finishes

MV 10



Spec Sheet



Cleaning Instructions



Methods of fastening


MV 16


MV 45


MV 60


Each HVAC grille can be fabricated with one or more access doors, to allow you to operate the controls of your AC unit. Size and location are custom made to order. Using a pivot, this door design is seamless and modern.
In stock architectural grilles with access doors are available here

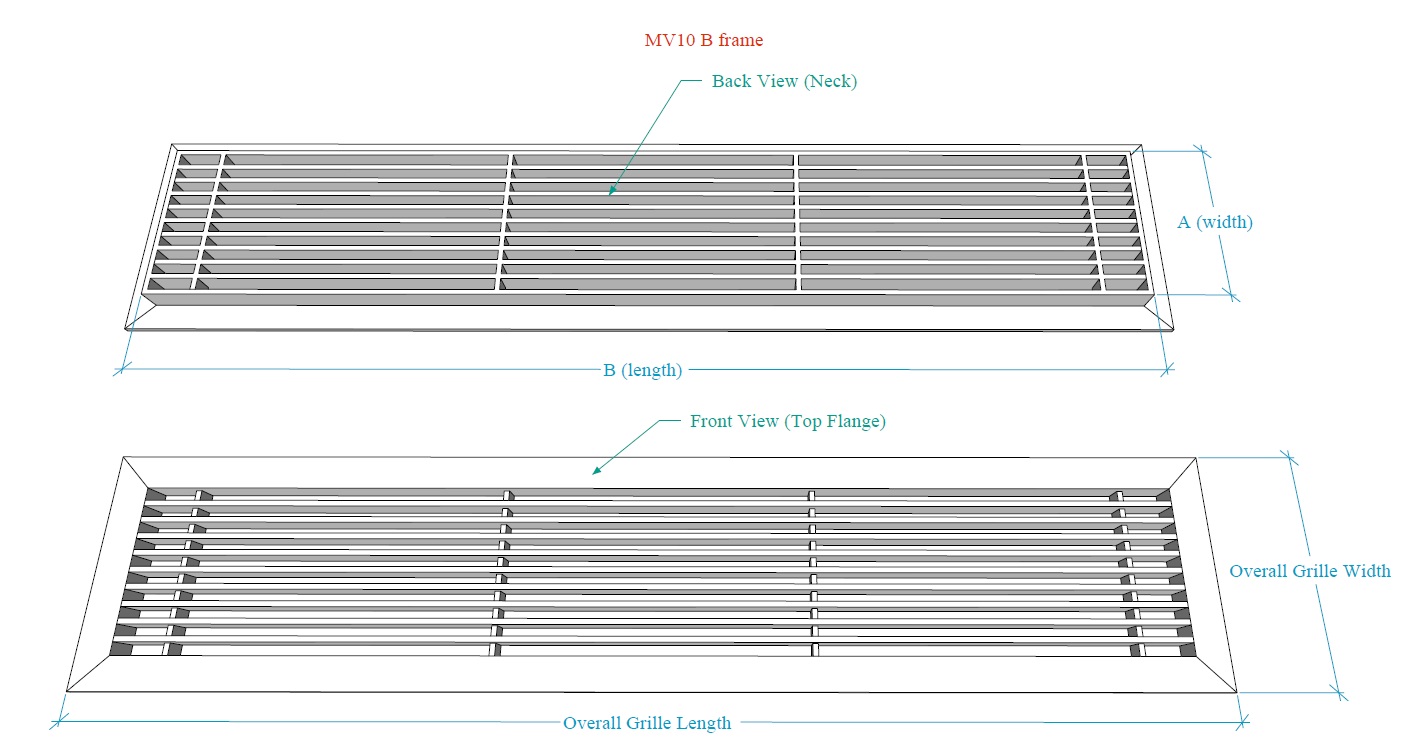

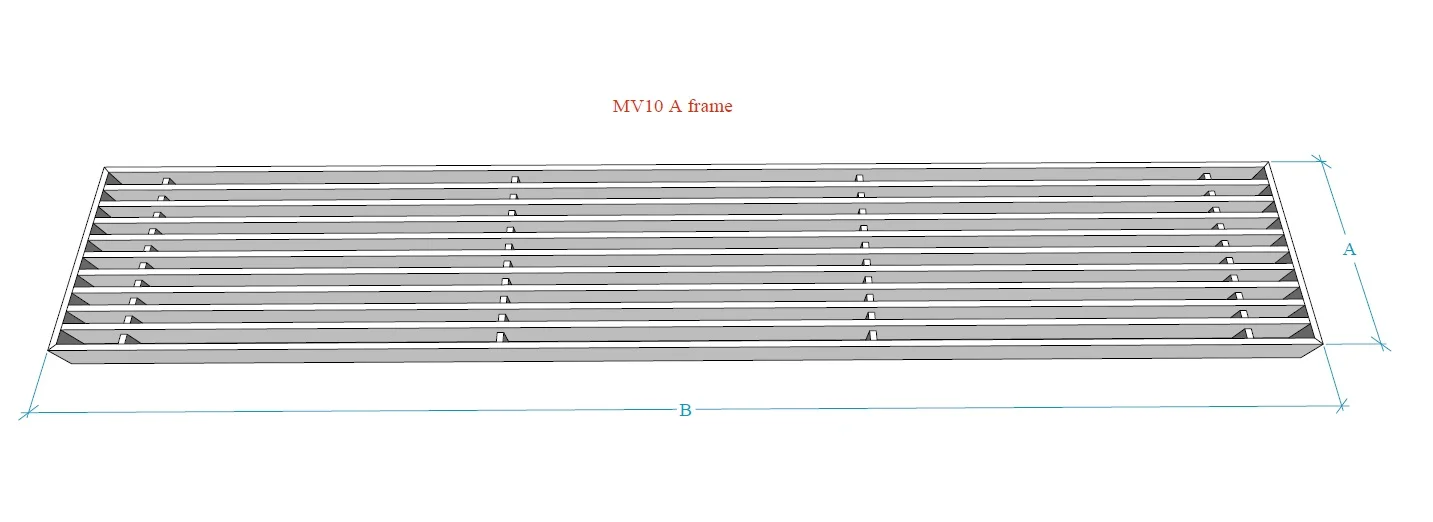

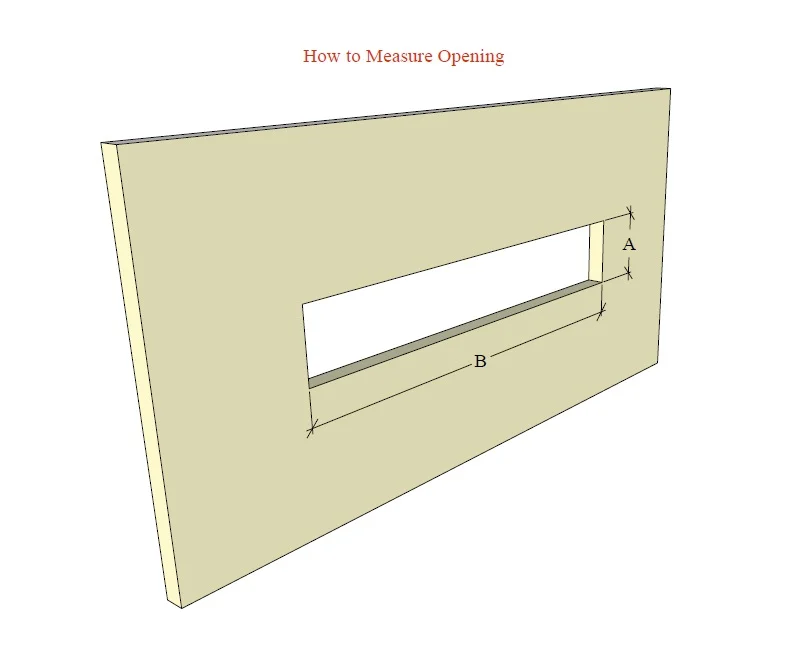

Always measure the opening where you want to place your grille. Based on this size we will create the core or neck of the grille. In some cases, like the A and E frame, that's the total size of the grille, but grilles with flange have an overall larger dimension.

notes:

  • always measure the horizontal plan - length (A) first.
  • it's recommended to allow 1/16" clearance for an easy fit
  • make sure frame (flange) has enough space to rest on top of opening (custom size flanges can be manufactured if needed)
  • in some cases the depth of the opening is limited, make sure the grille will fit. Most grilles are 3/4" or 7/8" deep.
  • if grille needs to be fastened with screws, let us know and our engineers will provide the best solution
